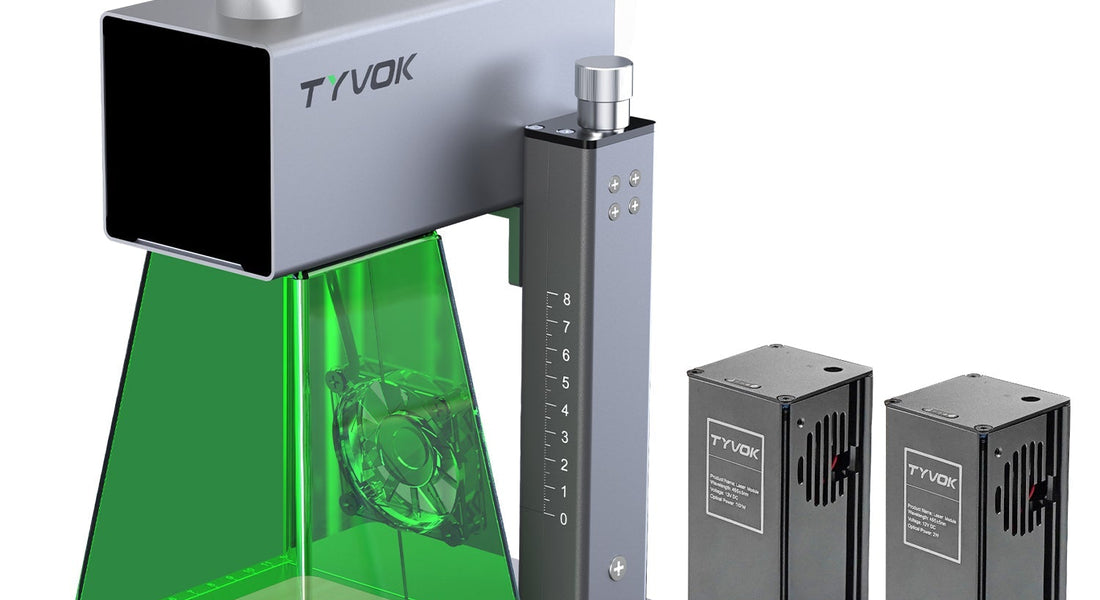

Official TYVOK P2 product image with the updated stand and interchangeable laser modules. Confirm the contents of your selected configuration.
The most useful measurement before buying a compact engraver is the size of the mark you want to make. TYVOK P2 currently lists a 60 × 60 mm working area, about 2.36 × 2.36 inches. That specification gives you a starting point for checking names, initials and small logos. It does not establish that every object placed nearby will fit or engrave successfully.
Use this checklist with a real design and a real blank. You can do the first checks with a ruler and a paper printout, before choosing a power option on the current TYVOK P2 product page.
Measure the complete artwork
Open the exact design you want to engrave and note its full width and height. Include borders, ornaments and every line of text. A short name may fit easily, while a longer name in the same style can extend beyond the planned area.
Create a 60 × 60 mm reference square in your design software, but keep it on a non-output guide layer or remove it before any production job. Place the artwork inside that square at actual size. This is a planning check; the current device profile, calibration and framing procedure still determine the actual operating setup.
Separate the mark from the object
A coaster can be wider than the design engraved at its center. Conversely, a small tag can have very little usable space once its hole and hardware are considered. Write down both the outer blank dimensions and the flat surface available for marking.
For a larger object with a small logo, check support, focus height and physical clearance with TYVOK before purchase. Send the object’s dimensions and a photo showing the intended location. Do not infer a maximum object size from the engraving-field number alone, or assume that an uneven surface will stay in focus.
Try the longest version you expect to use
If your project uses names, test the longest likely name rather than your shortest sample. For a logo, include the smallest text and thinnest line that must remain recognizable. Print at 100% scale, verify the dimensions with a ruler and position the proof on the blank with the laser off. Remove the proof before any laser operation.
View it from the distance at which someone would normally use the finished item. If the text already feels too small on paper, making every detail smaller to squeeze it into the field is unlikely to solve the design problem. Simplify the mark, choose a different layout or consider a larger-format workflow.
Choose power after checking the material
P2 offers interchangeable 2W, 5W and 10W heads. Treat those as configuration choices, rather than an automatic ranking of results. More power does not create a larger engraving field or establish compatibility with an unknown coating.
Identify the blank, finish and intended appearance, then compare current head guidance. The existing P2 head-selection guide explains how to keep a sample comparison consistent. For material-specific starting guidance, use the material settings library. Keep standard P2 personalization separate from bare-metal and other jobs requiring a different laser process.
Allow room for the complete workspace
A compact machine still needs a properly arranged operating space. Check the current stand dimensions, object support, cable routing, exhaust arrangement and required protective measures. Confirm the enclosure or shielding and laser-rated eye protection appropriate to the configuration. Keep unauthorized people and pets out of the operating area.
Before ordering, ask what the chosen bundle includes and what your workspace will need separately. Include test blanks and any required software or accessories in your budget. Check current availability and delivery information for your destination rather than relying on an old blog price.
Make the purchase decision with one project
Write a short project brief: the artwork dimensions, blank identity, usable marking surface, desired result and workspace requirements. If these are clear and the configuration supports them, you have a concrete basis for choosing P2.
If the design needs a larger uninterrupted field, the object cannot be supported correctly or material suitability remains uncertain, resolve that issue first. TYVOK’s laser buying guide can help you compare other machine paths. A good fit begins with the finished project you actually want to make.
