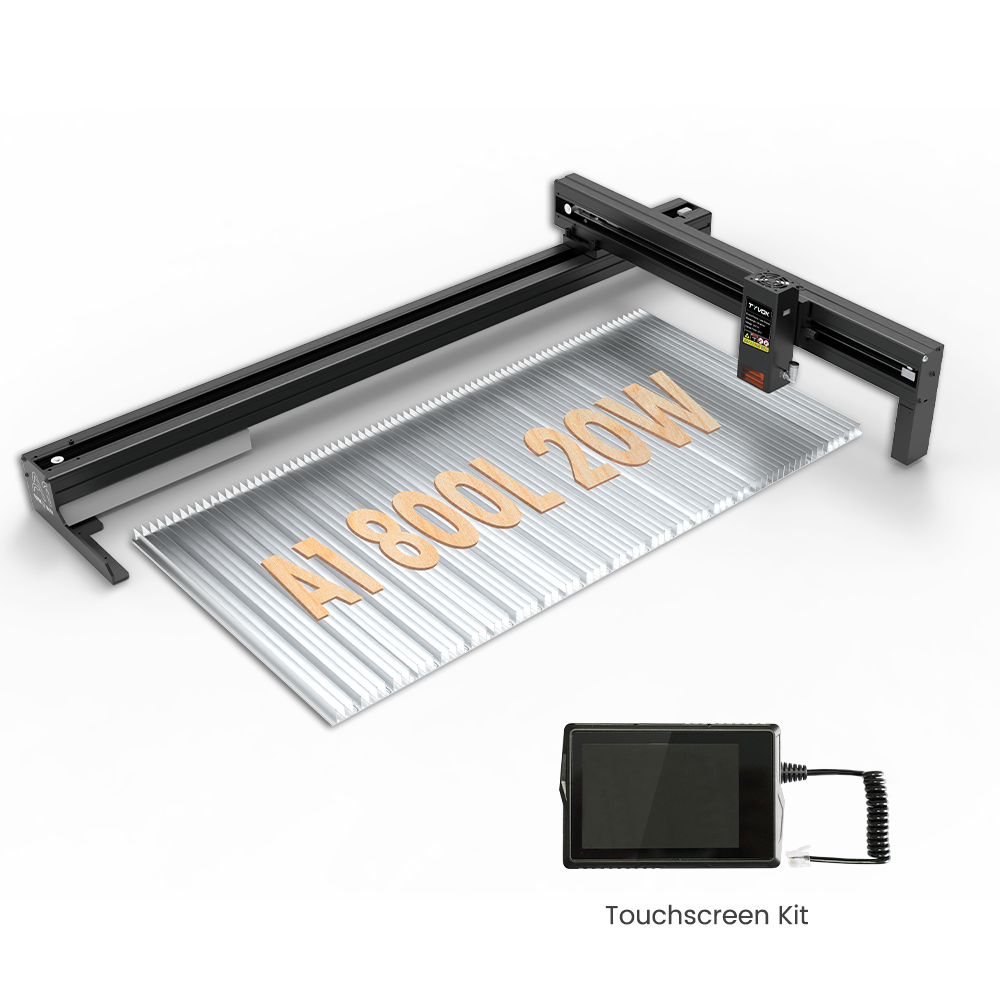

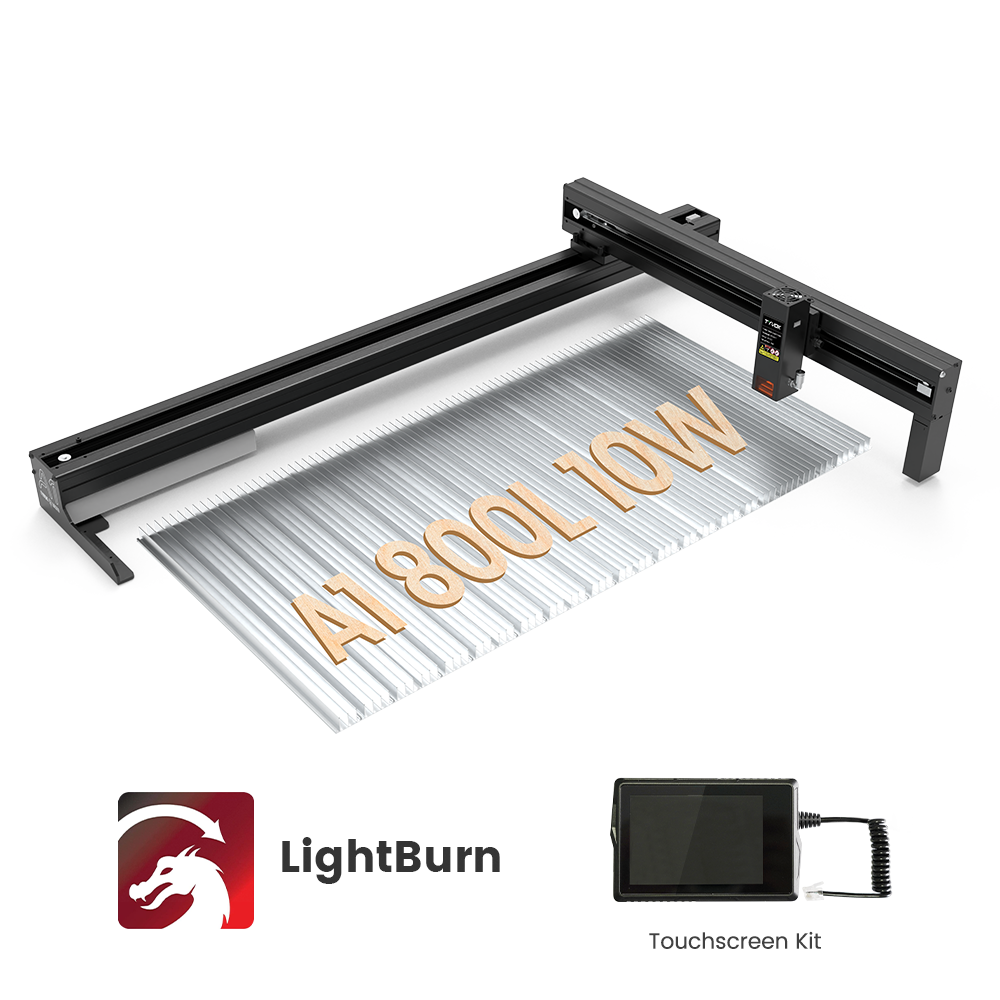

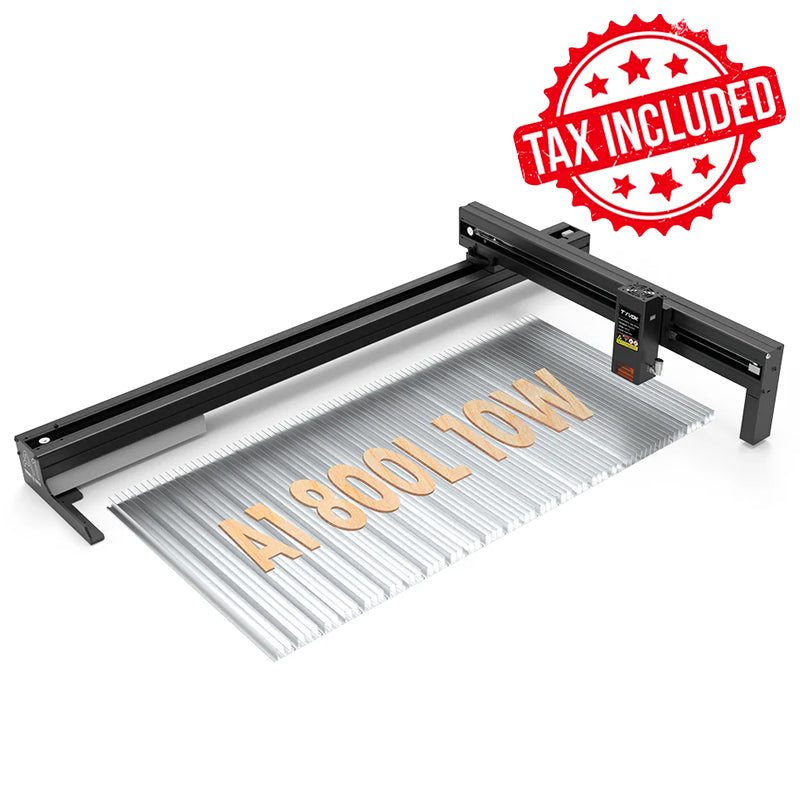

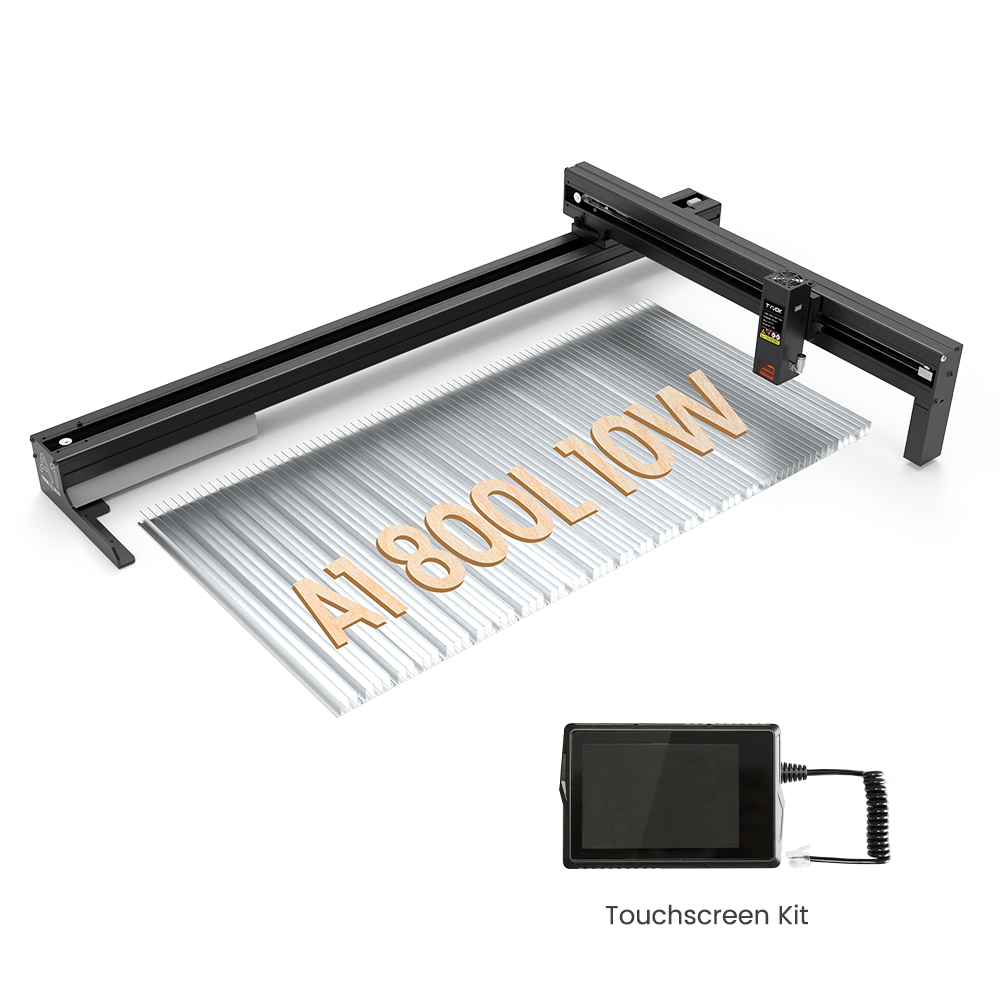

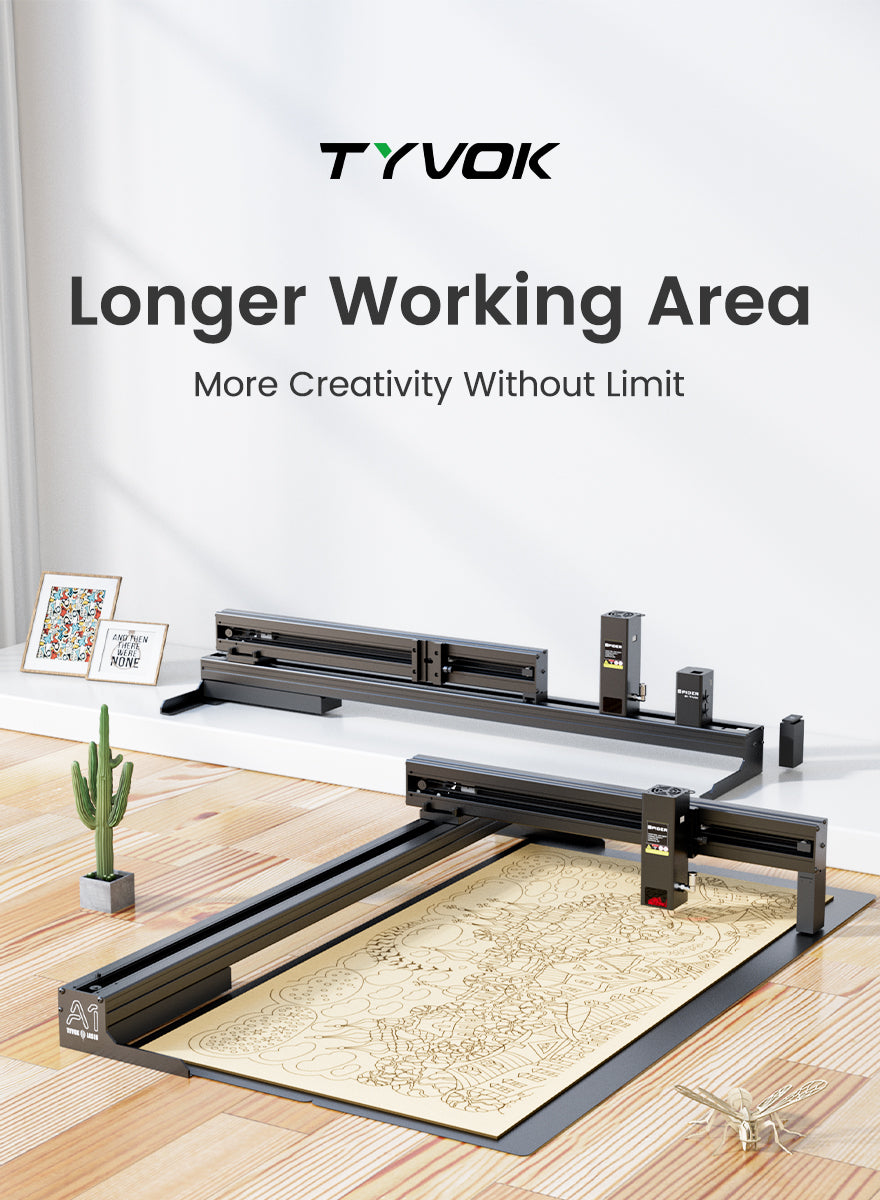

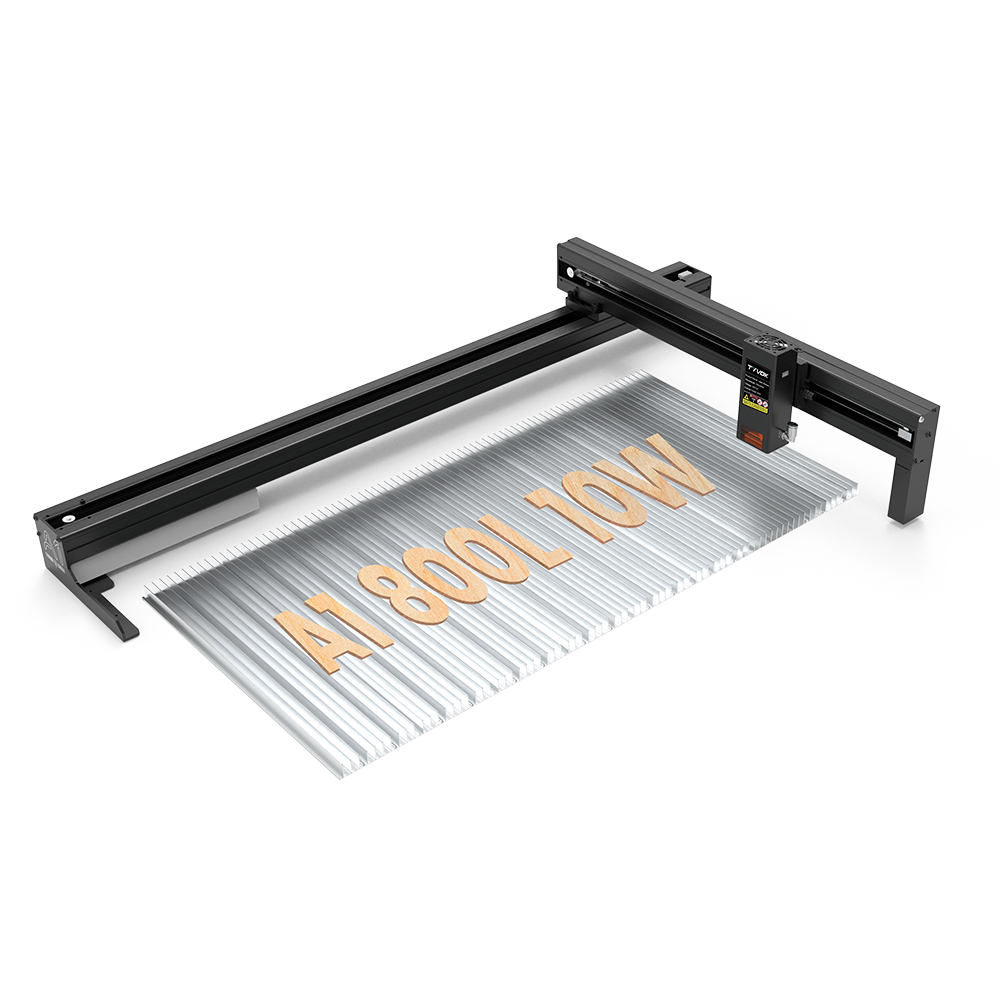

Tyvok Spider A1800L、800*400mm レーザー彫刻機およびカッター

ギフト包装

製品製作

教育目的での使用

バンディング

DIYマジック

ギフト包装

製品製作

教育目的での使用

バンディング

DIYマジック

Hear it from the Experts

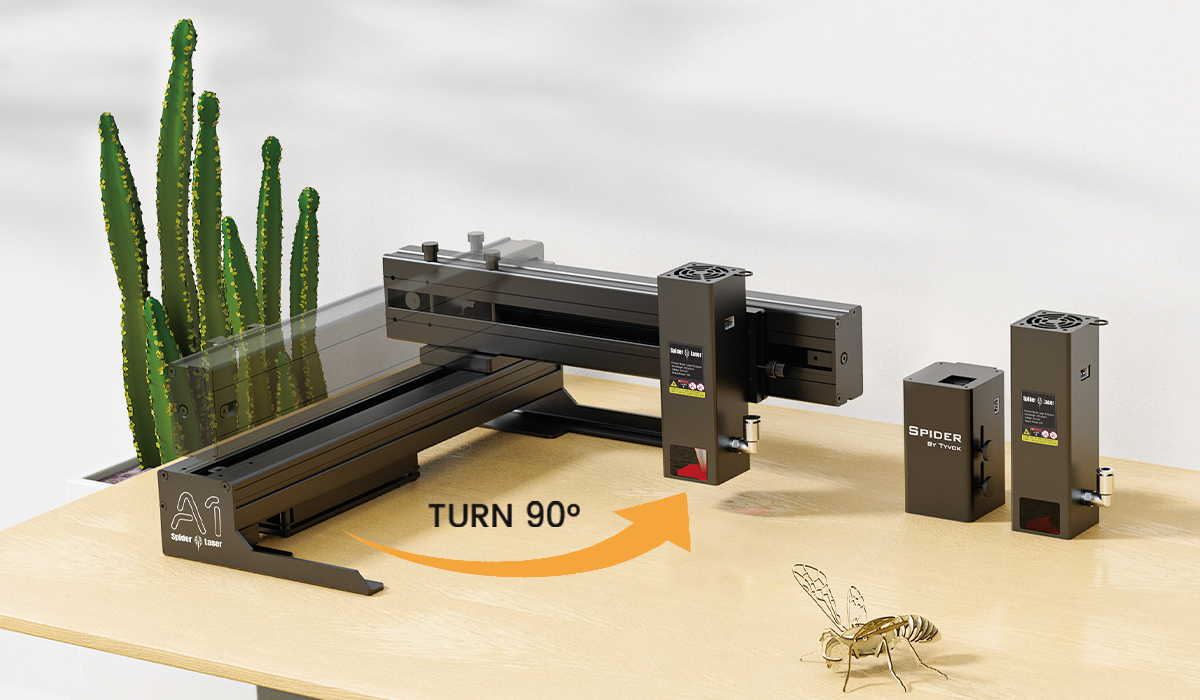

0～90°の角度調整可能

組み立て不要すぐに使える

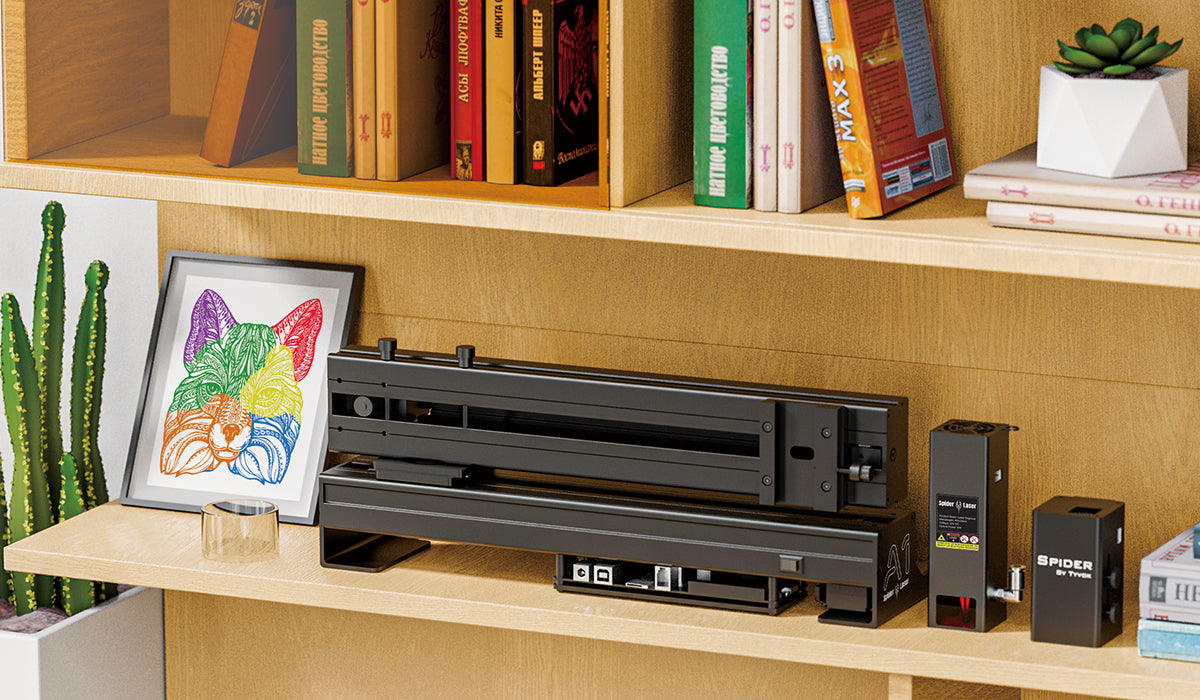

素早く便利な保管が可能

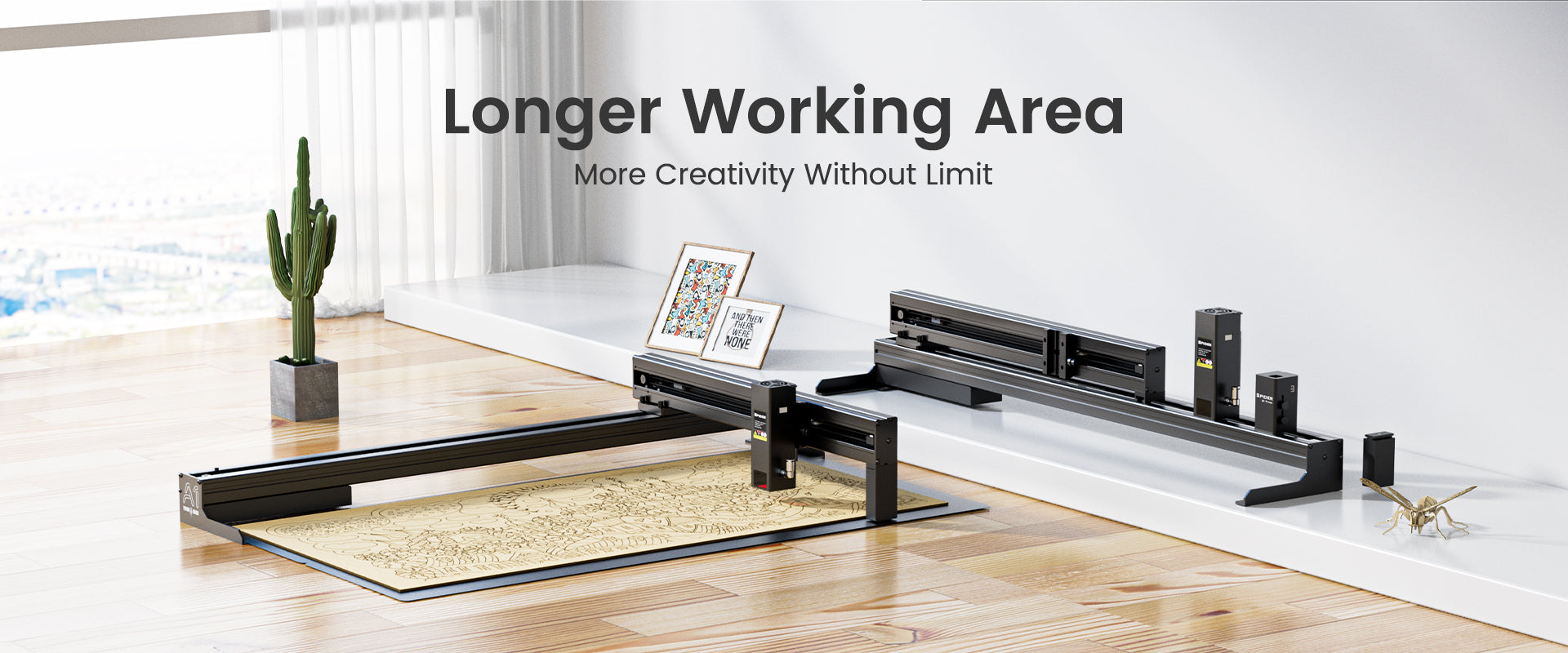

折りたたみ式で設置も簡単

コンパクトで設置も簡単

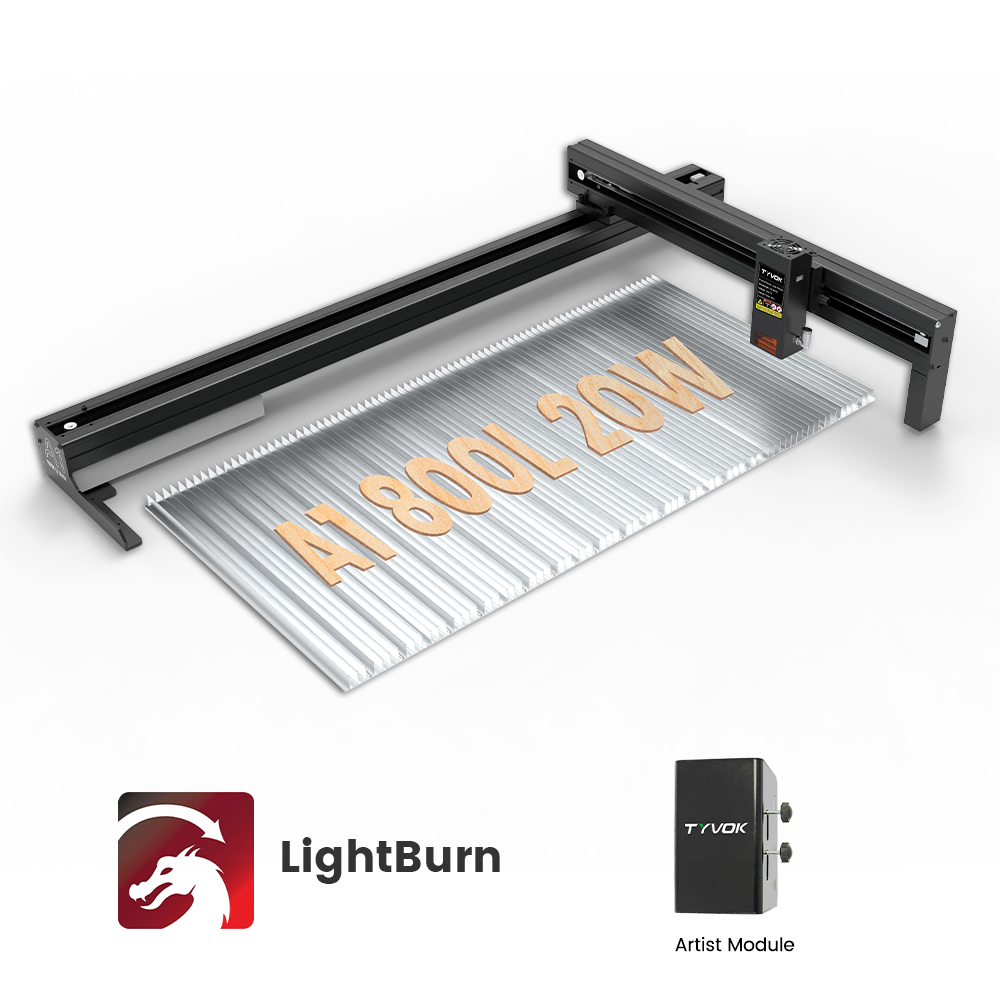

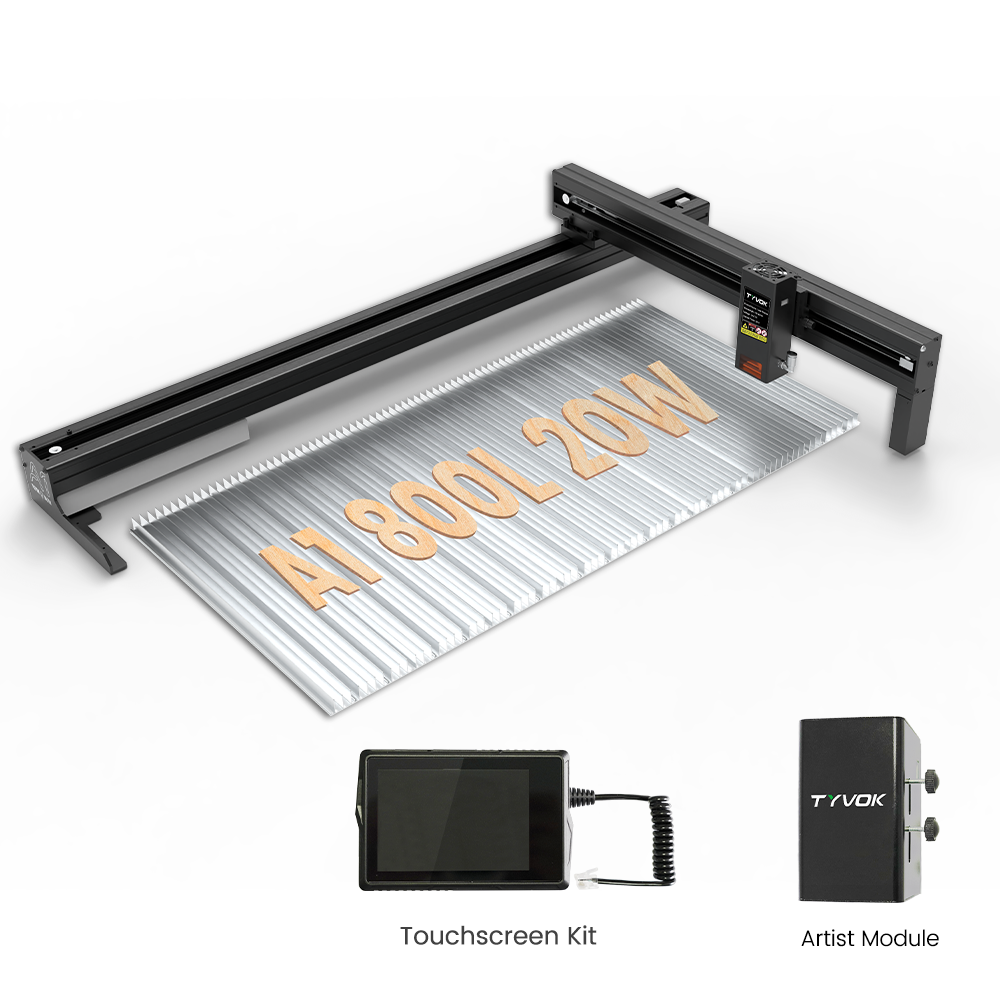

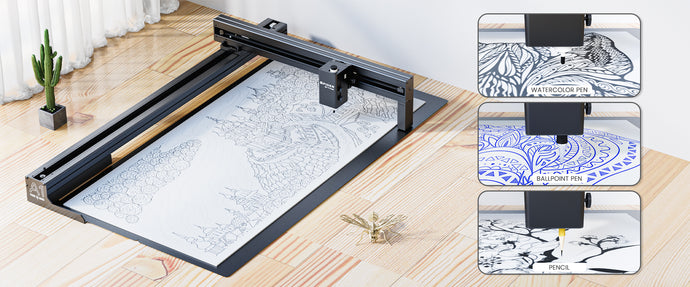

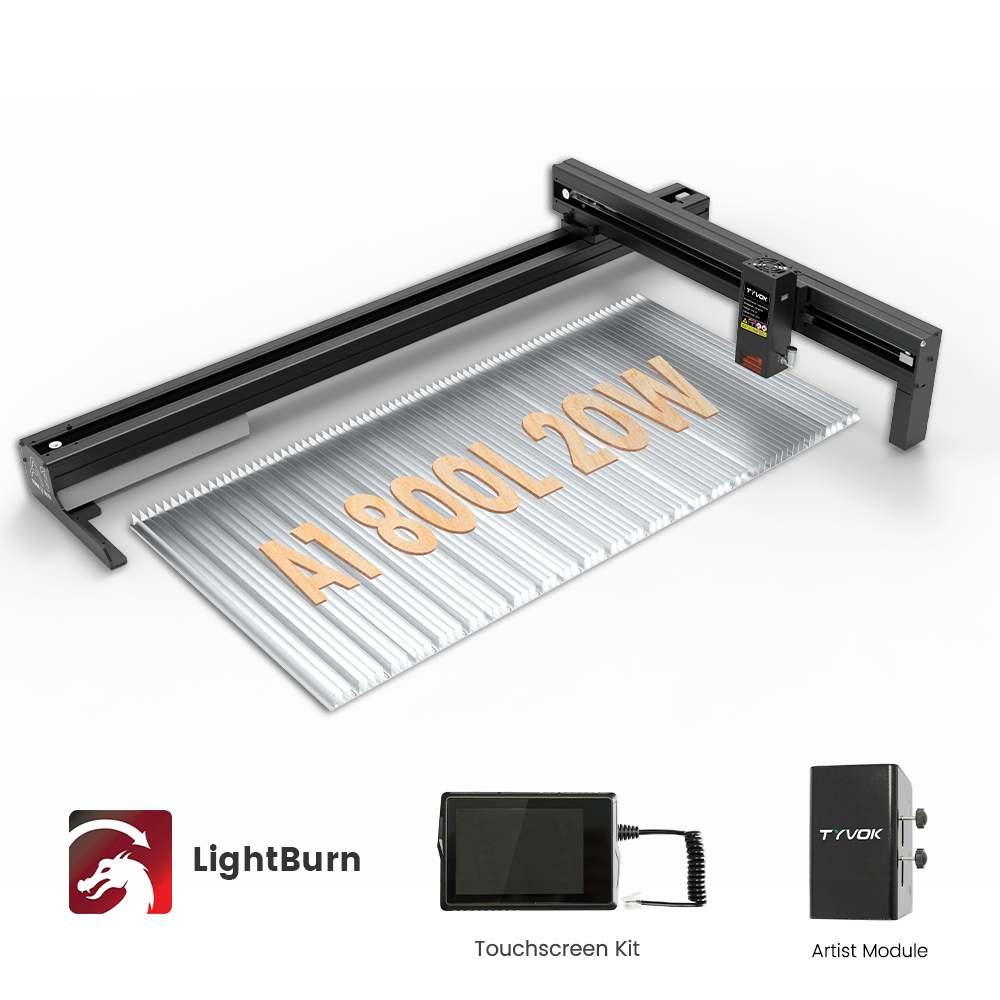

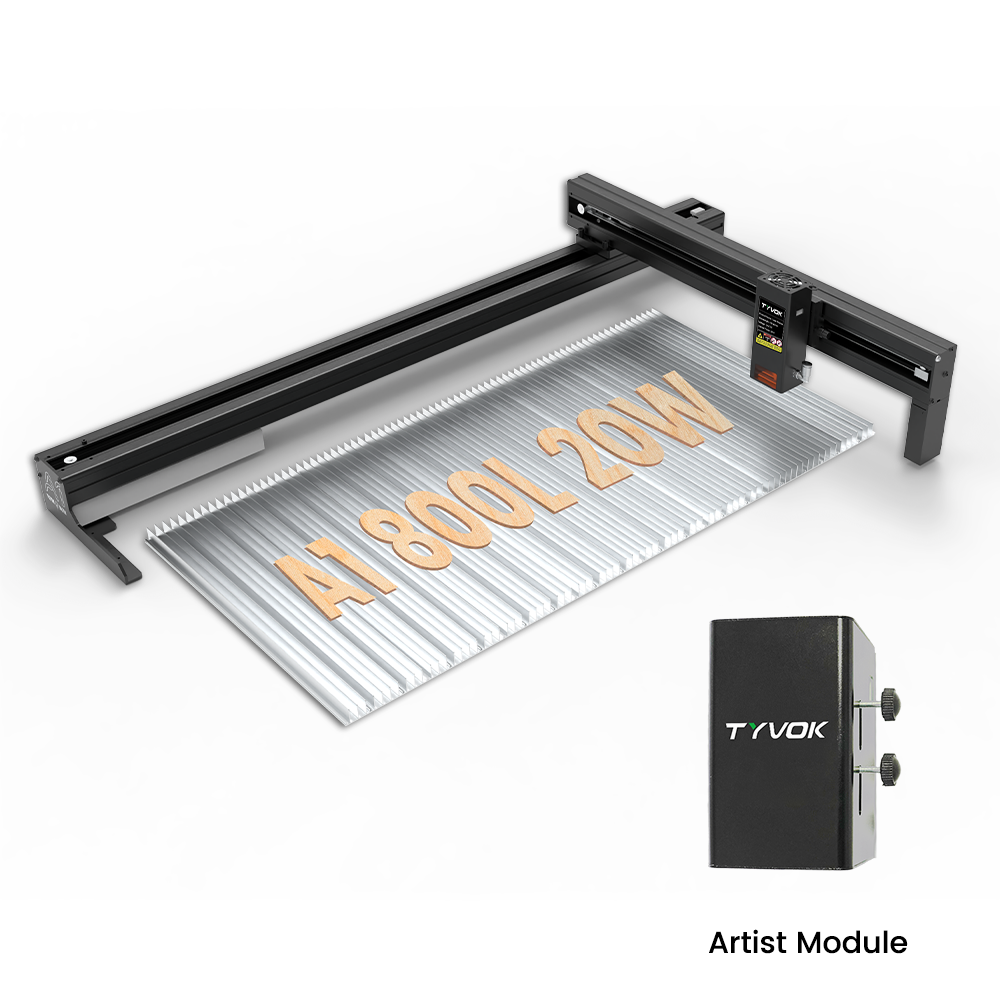

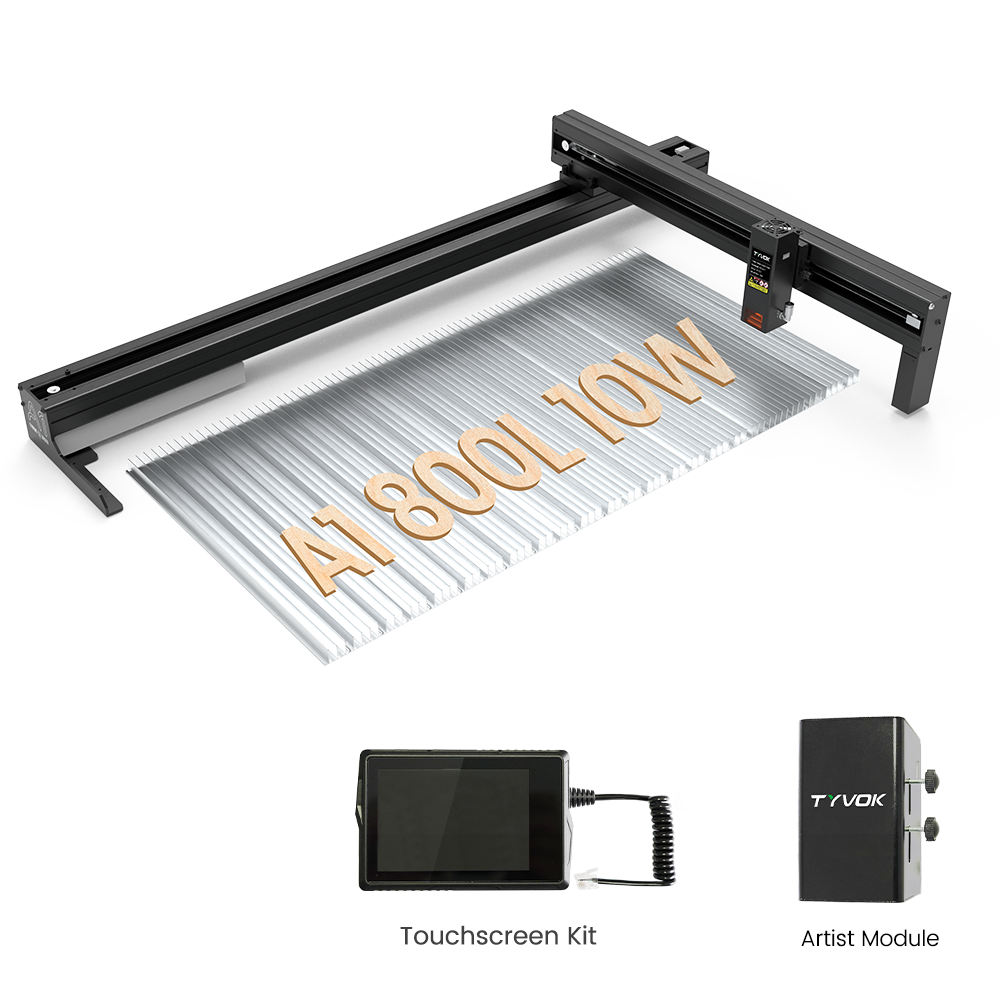

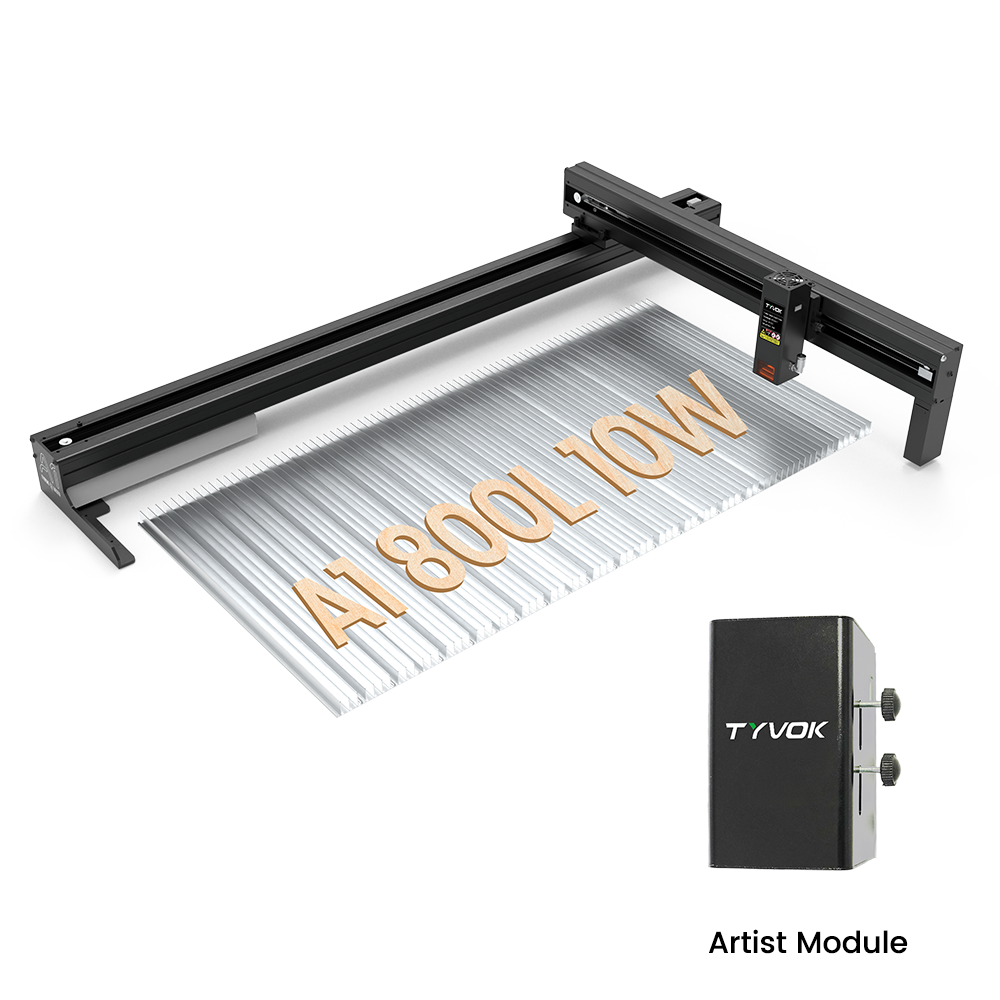

アーティストモジュールはさまざまなペンをサポート

サポートペン＆彫刻ペン＆ホットホイルペン

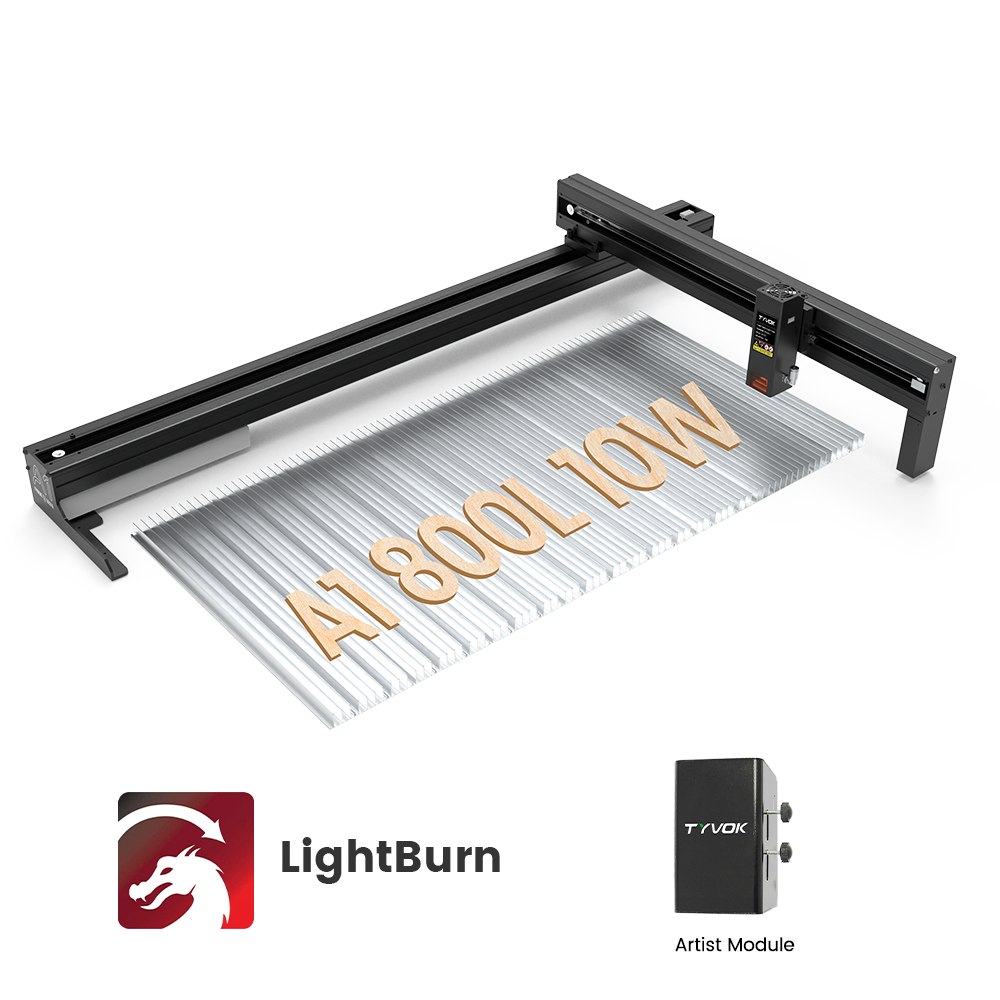

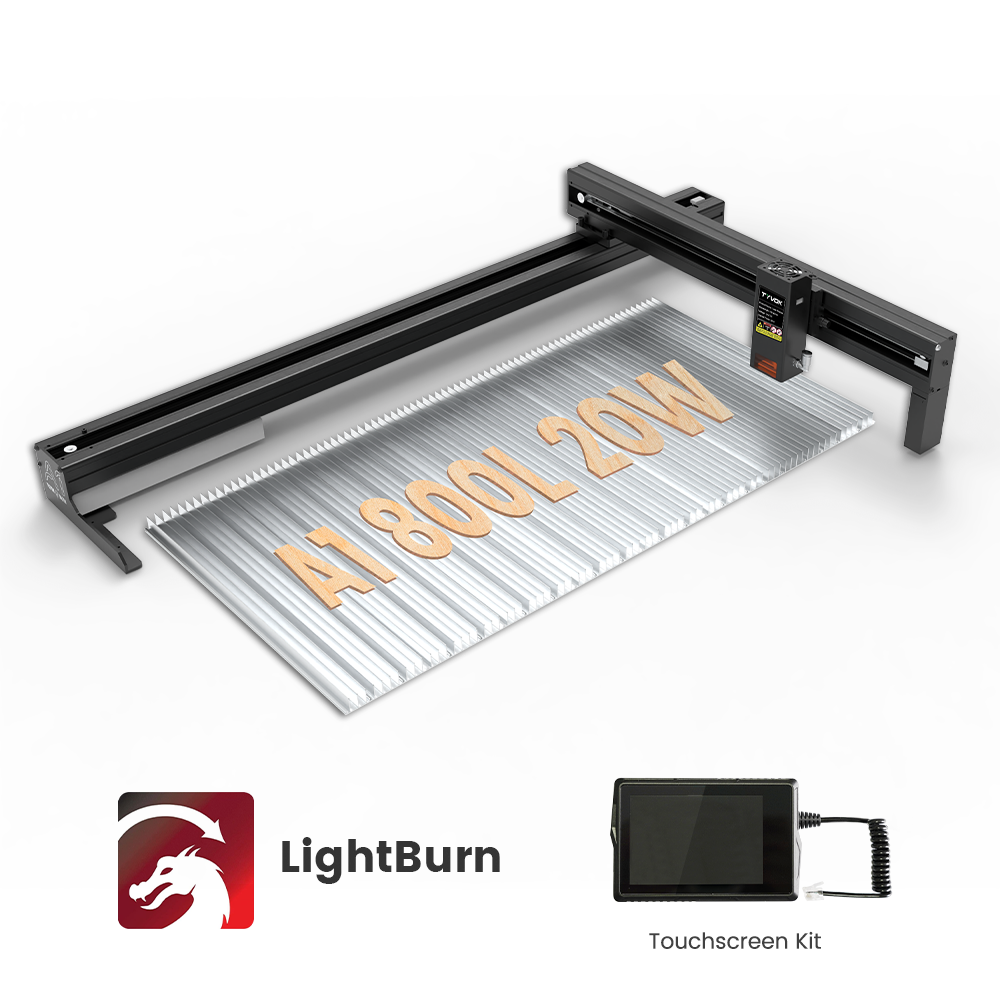

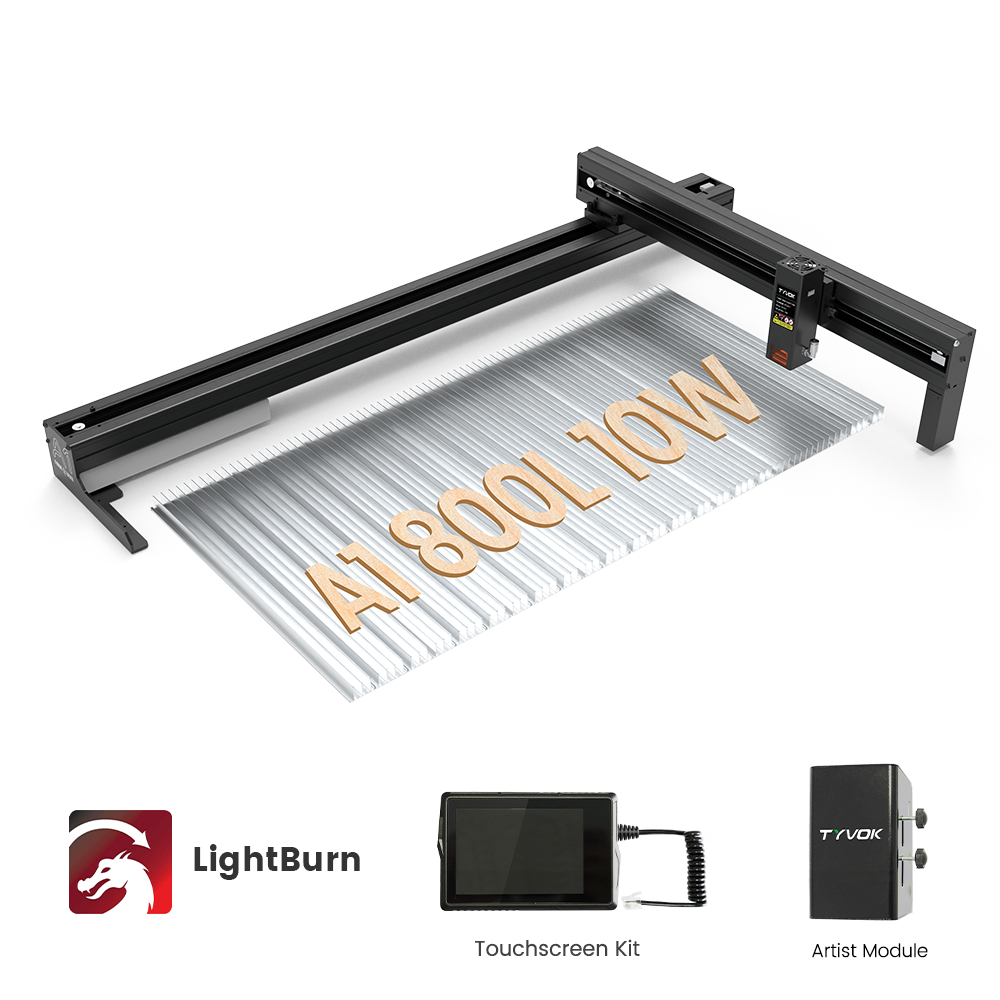

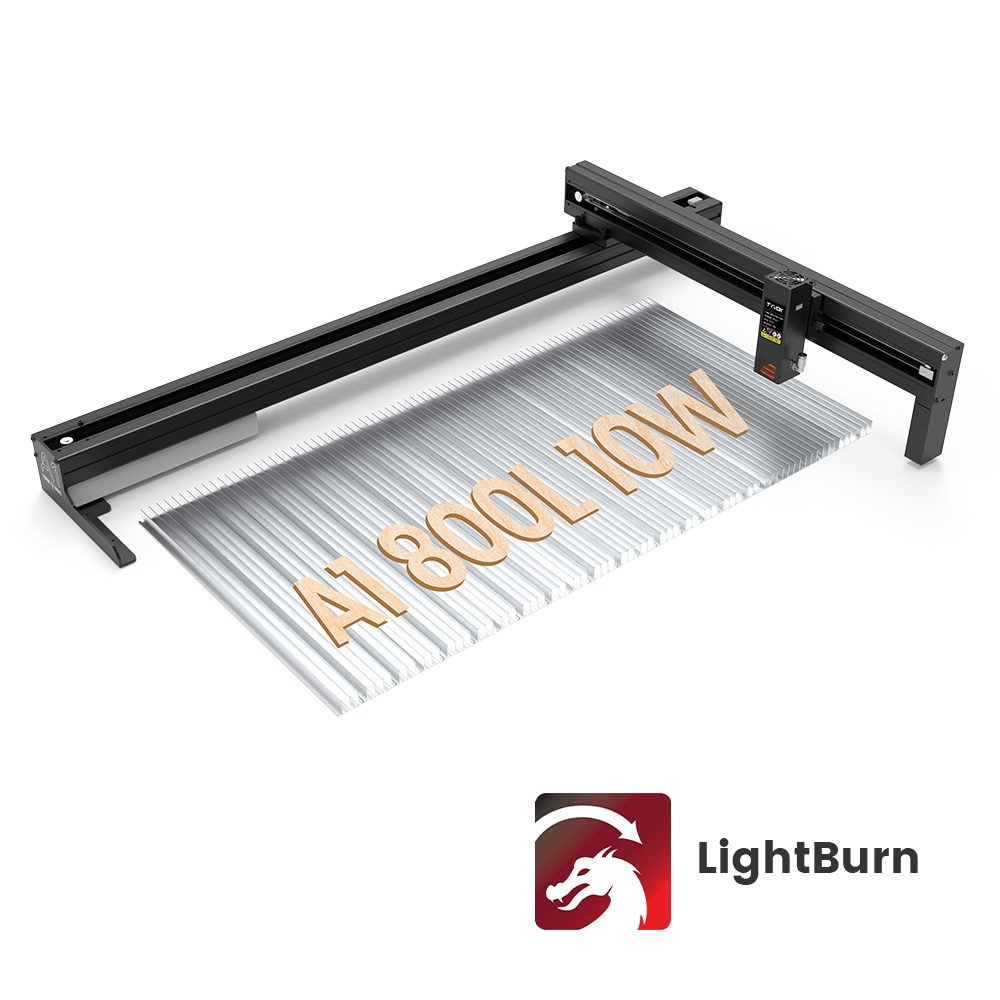

Compatible with LightBurn & LaserGRBL Software

Offers flexibility and ease of use for all engraving projects.

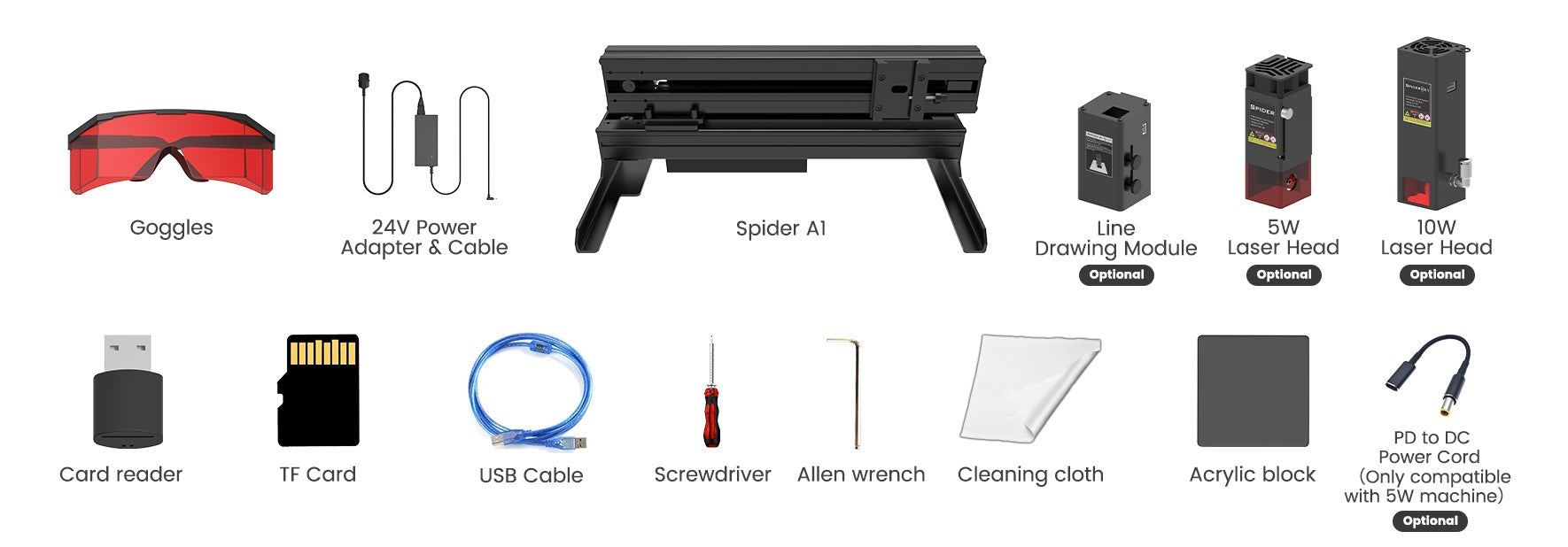

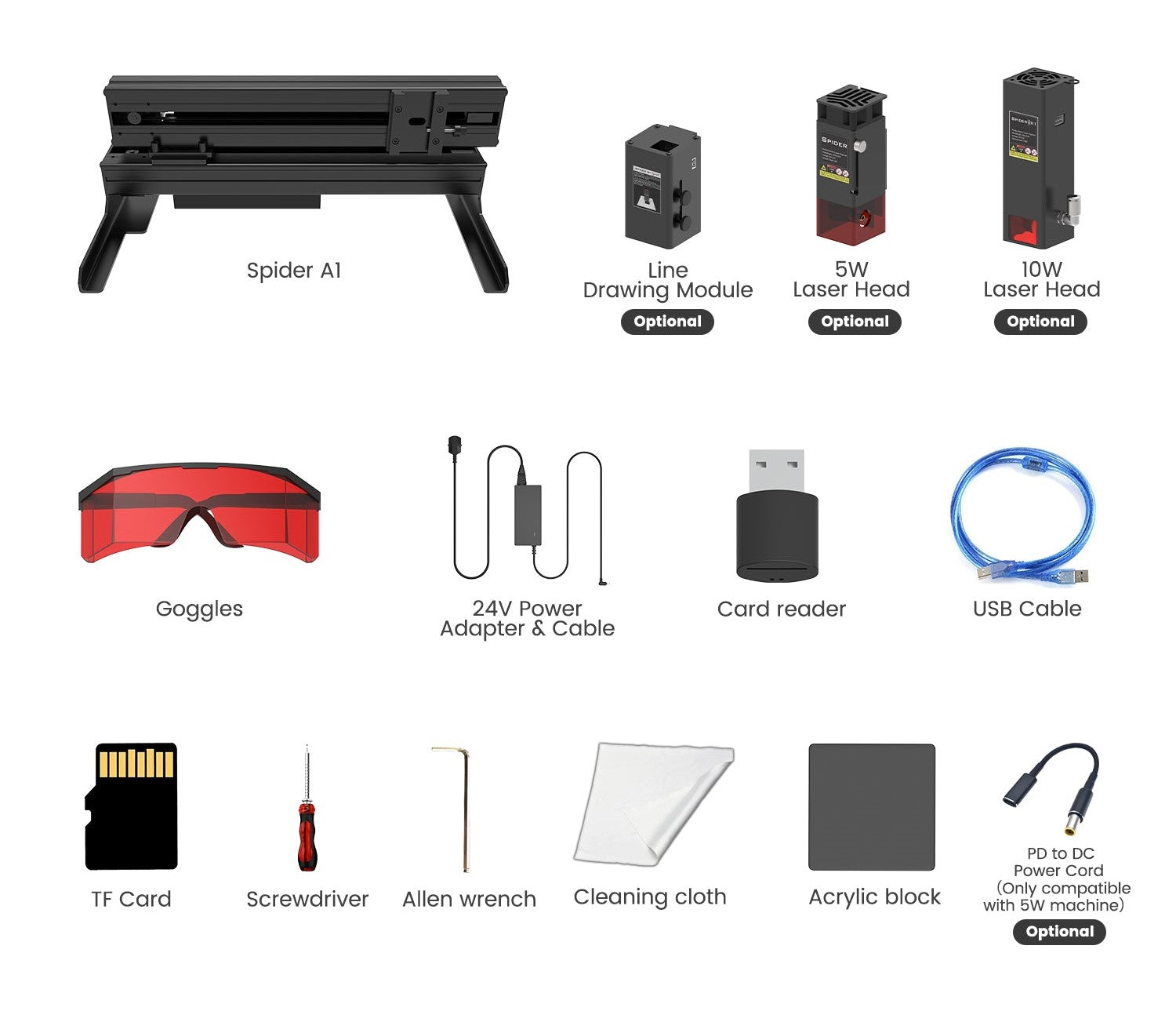

箱の中身

Tyvokで創造力を発揮しましょう

ユーザーの作品

7.jpg__PID:5fc8b83a-dc01-49b8-903f-9d5a41164295

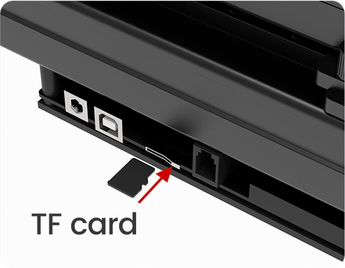

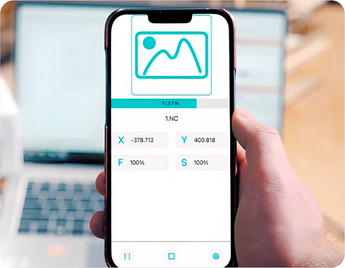

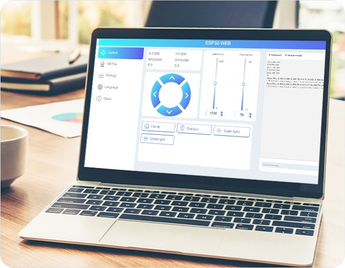

複数の操作方法

Tyvok Spider A1800L、800*400mmフォーマットのレーザー彫刻機とカッター、大型でポータブルな製品は、さまざまな方法で実行するのに適しており、ニーズに応じて使用できます。そうでない場合は、当社のサービスチームにお問い合わせください。

Specifications
	Spider A1 800L 10W	Spider A1 800L 20W
Power of the laser Module	10W	20W
Laser Electric Power	48W	120W
Laser Wavelength	455+5nm	455+5nm
Laser Resource	Diode Laser	Diode Laser
Working Area	400mm*800mm	400mm*800mm
Laser Spot Size	0.08*0.06mm	0.08*0.06mm
Maximum Speed	24,800mm/min	24,800mm/min
Movement speed	6000mm/min	6000mm/min
Support Air Assist interface	✔	✔
Support Software	Lightburn, LaserGRBL	Lightburn, LaserGRBL
Support Operation Mode	TF Card, Web, Engrave software	TF Card, Web, Engrave software
Support Wi-Fi	✔	✔
Support Material	Cardboard, Wood, Bamboo, Rubber, Acrylic, Fabric, Plastic, Metal	Cardboard, Wood, Bamboo, Rubber, Acrylic, Fabric, Plastic, Metal
Support File Formats	svg, png, jpg, bmp, dxf	svg, png, jpg, bmp, dxf
Offline Work	✔	✔
Input Voltage	100-240V, 50-60HZ	100-240V, 50-60HZ
Output Voltage	DC 24V, 2A	DC 24V, 5A
Foldable	✔	✔
Module Type	10W Laser Module	20W Laser Module
Folded Size	170*1000mm	170*1000mm

Specifications
	Spider A1 800l 10W
Power of the laser Module	10W
Laser Electric Power	48W
Laser Wavelength	455+5nm
Laser Resource	Diode laser
Working Area	400mm * 800mm
Laser Spot Size	0.08 * 0.06mm
Maximum Speed	24,800mm/min
Movement speed	6000mm/min
Support Air Assist interface	✔
Support Software	Lightburn, LaserGRBL
Support Operation Mode	Mobile APP, TF Card, Web, Engrave software
Support Wi-Fi	✔
Support Material	Cardboard, Wood, Bamboo, Rubber, Acrylic, Fabric, Plastic, Metal
Support File Formats	svg, png, jpg, bmp, dxf
Offline Work	✔
Input Voltage	100-240V, 50-60Hz
Output Voltage	DC 24V, 2A
Foldable	✔
Module Type	10W laser head
Folded Size	170 * 1000mm
	Spider A1 800l 20W
Power of the laser Module	20W
Laser Electric Power	120W
Laser Wavelength	455+5nm
Laser Resource	Diode laser
Working Area	400mm * 800mm
Laser Spot Size	0.08 * 0.06mm
Maximum Speed	24,800mm/min
Movement speed	6000mm/min
Support Air Assist interface	✔
Support Software	Lightburn, LaserGRBL
Support Operation Mode	Mobile APP, TF Card, Web, Engrave software
Support Wi-Fi	✔
Support Material	Cardboard, Wood, Bamboo, Rubber, Acrylic, Fabric, Plastic, Metal
Support File Formats	svg, png, jpg, bmp, dxf
Offline Work	✔
Input Voltage	100-240V, 50-60Hz
Output Voltage	DC 24V, 5A
Foldable	✔
Module Type	20W laser head
Folded Size	170 * 1000mm

More user and expert reviews

Great Product for the money.

We have a small laser engraving business, and we needed a portable unit that would allow us to engrave on-site at events. This fit the bill perfectly.

a lazer engraver to draw

Good purchase.I bought the Tyvok A1 800L with the drawing kit and it gives me real help to accelerate my draw's work. Some difficulties to program the machine and the software but after looking at some videos, I get it.
Just a little disappointment, when I bought the machine it's not indicated that Lightburn software is not free. It would be good to mentioned it...

Tyvok A1 400x800 20w - ohledně rozměrům velmi skvělé řešení pro skladnost a úsporu místa! Zakoupeno včetně podložky, bohužel nevím jak upevnit ne zcela rovnou překližku -řešení? Cenově velmi výhodné zboží pro hobby!

I really like this machine！

I purchased the A1 800 L to carve my woodworking projects, from tigers to owl shapes. I was impressed with the machine's ability to carve images on a variety of woods. I also shared the projects on Tyvok's FB community. I have used lightBurn for most of my projects with great success. A great purchase for fun projects.

Good Value for Price

The TYVOK Spider A1800L is designed for quick access and easy use—perfect for artists who need flexibility in their tools!
