Tyvok Spider X1S 大型レーザー彫刻機およびカッター

$349.00 ~~$499.00~~ $150.00節約

特定の地域で送料無料

HOT

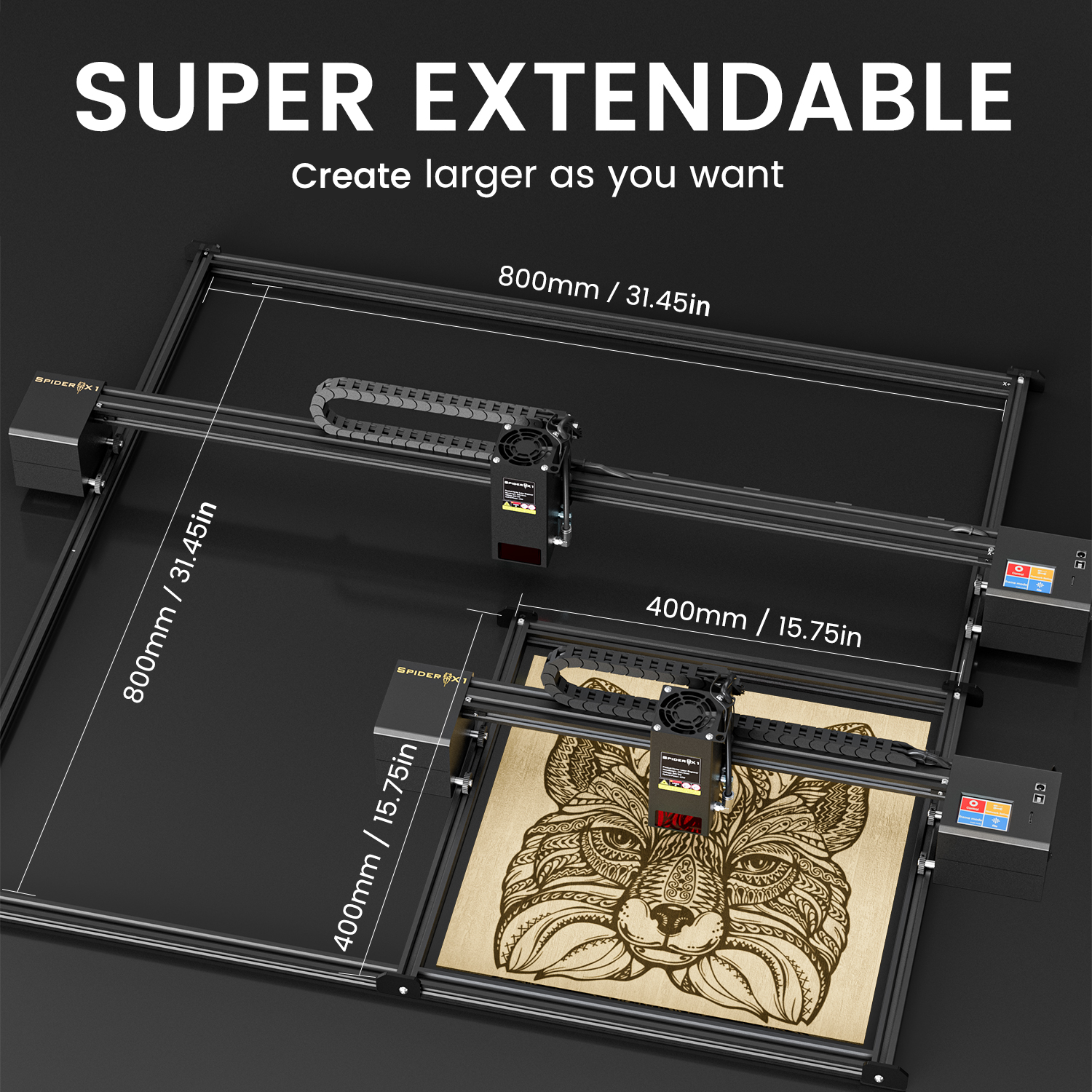

拡張可能なX軸とY軸: 800*2000mm ( 31.5" x 78.7")
調整可能なエアアシスト内蔵

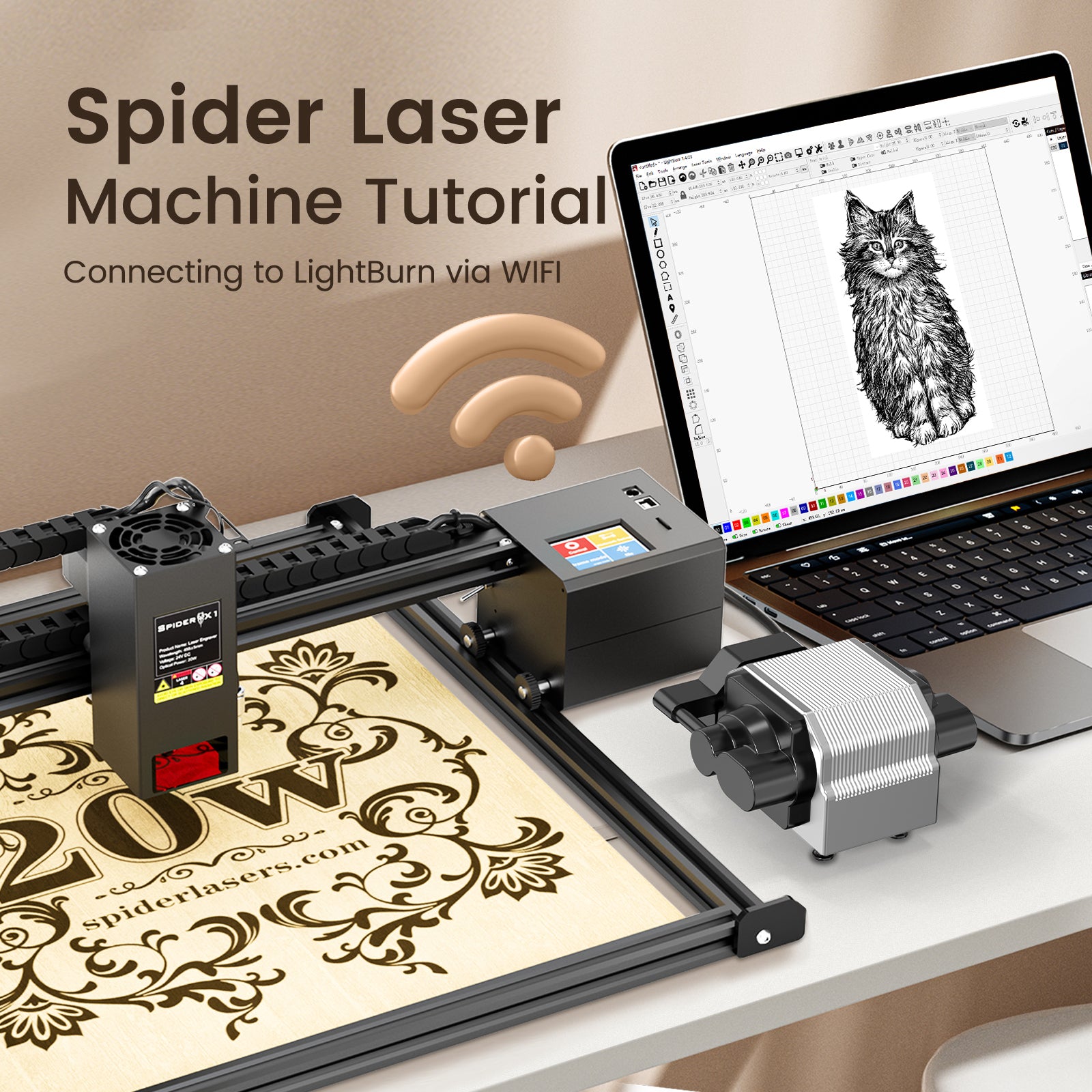

LightBurnでワイヤレス

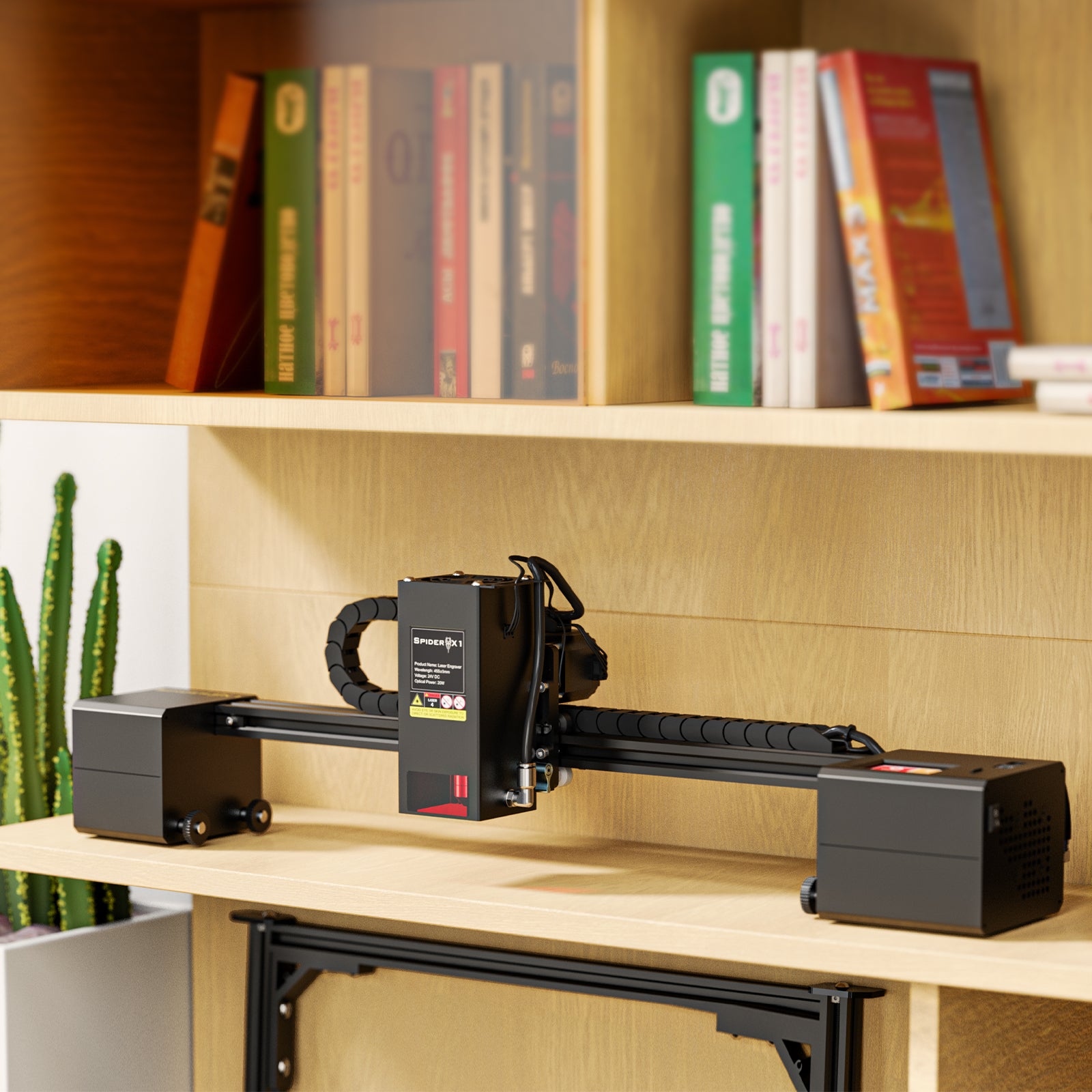

持ち運びが簡単、省スペース
組み立て不要のDIY構造
タッチスクリーン

タイボックスパイダー X1S レーザー

X1S 400*400 スパイダーX1S 20W スパイダーX1S 10W 🔥X1S 20W 拡張パック 🔥X1S 10W ラグジュアリーパック X1S 10W 拡張パック 🔥X1S 20W ラグジュアリーパック

800*2000 MMサイズにアップグレード

いいえ 800*2000mm

製品バリエーション

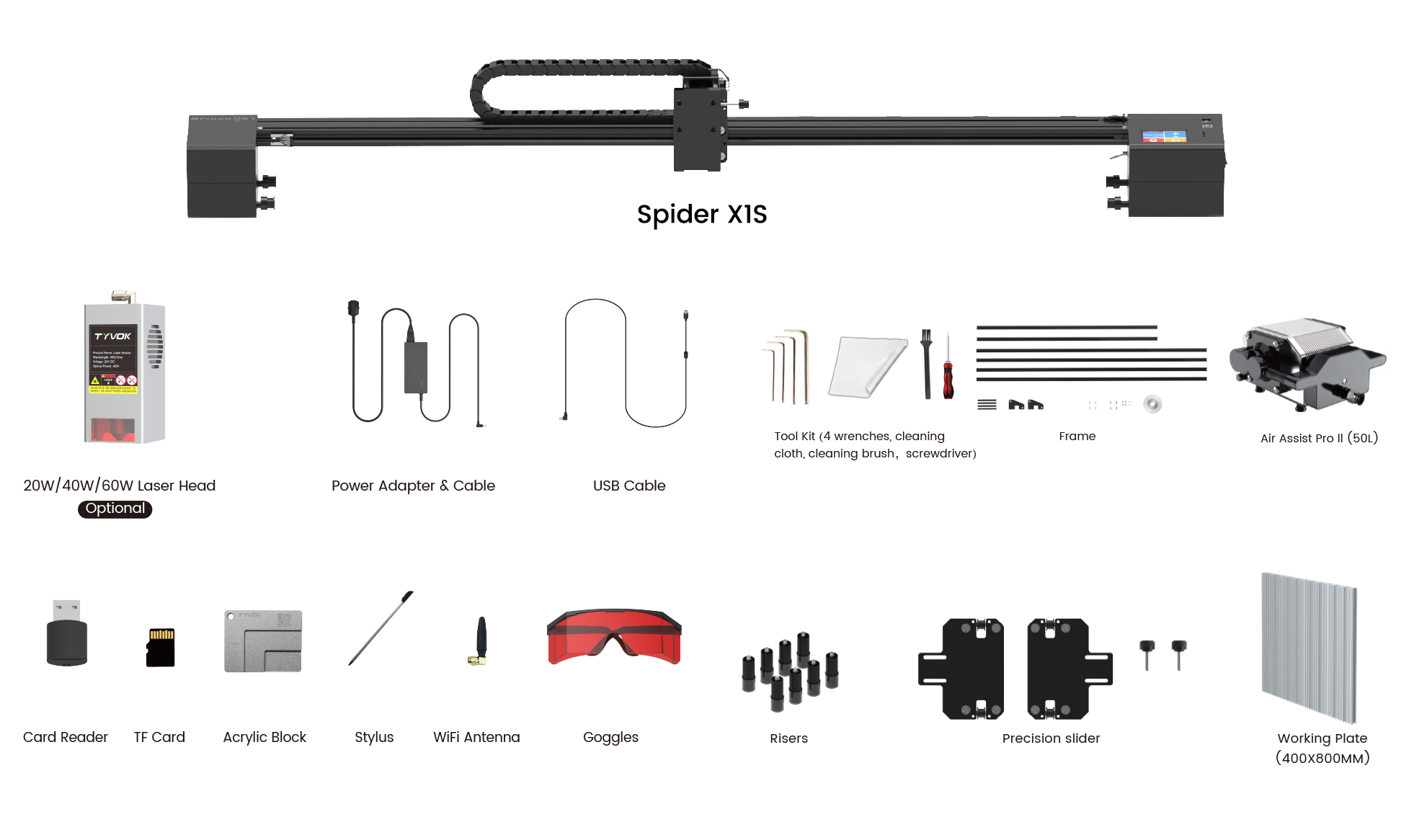

Package Includes:

Spider X1S Machine with 10W Laser Head
Working Plate 400x400 mm
Air Assist (50L)
Risers*4

量

安全で安心なチェックアウト

$349.00 ~~$499.00~~

Tyvok X1S vs X1S Pro

	Tyvok X1S Buy Now	Tyvok X1S Pro Buy Now
Positioning	Standard expandable laser engraver, 800mm integrated X-axis (no assembly)	Professional-grade batch production solution with synchronized multi-machine support
Laser Power Options	10W, 20W, 40W (Output: 24V / 5A)	20W, 40W, 60W (Output: 24V / 10A)
Batch Production	Designed for solo users, ideal for DIY and small shops	Supports shared Y-axis across multiple units for synchronized or independent operation
Best For	DIY enthusiasts, hobby woodworkers, Etsy beginners	Studios, commercial engraving, Etsy shops with high-volume orders
Modular System	Partial modular design; main frame is assembly-free	Fully modular structure; plug-and-play expansion system
Price Range	Mid-range pricing; ideal for home users & side hustles	Premium pricing; built for efficiency & profitability

Tyvok X1S

Buy Now

Tyvok X1S Pro

Buy Now

Positioning

Standard expandable laser engraver, 800mm integrated X-axis (no assembly)

Professional-grade batch production solution with synchronized multi-machine support

Laser Power Options

10W, 20W, 40W (Output: 24V / 5A)

20W, 40W, 60W (Output: 24V / 10A)

Batch Production

Designed for solo users, ideal for DIY and small shops

Supports shared Y-axis across multiple units for synchronized or independent operation

Best For

DIY enthusiasts, hobby woodworkers, Etsy beginners

Studios, commercial engraving, Etsy shops with high-volume orders

Modular System

Partial modular design; main frame is assembly-free

Fully modular structure; plug-and-play expansion system

Price Range

Mid-range pricing; ideal for home users & side hustles

Premium pricing; built for efficiency & profitability

Specifications
	Spider X1S 20W	Spider X1S 40W
Power of the Laser Module	20-24W	40-44W
Machine Performance	120W	240W
Laser Wavelength	455±5nm	455±5nm
Laser Source	Diode Laser	Diode Laser
Engraving Area (Standard Mode)	800MM x 800MM	800MM x 2000MM
Cutting Area (Standard Mode)	800MM x 800MM	800MM x 2000MM
Engraving Area (Extension Mode)	800MM x 2000MM	800MM x 2000MM
Cutting Area (Extension Mode)	800MM x 2000MM	800MM x 2000MM
Laser Point	0.08 x 0.06mm	0.08 x 0.06mm
Maximum Speed	24,800mm/min	24,800mm/min
Movement Speed	6,000mm/min	6,000mm/min
Support Air Assist Interface	✔	✔
Support Software	LightBurn, LaserGRBL	LightBurn, LaserGRBL
Support Operation Mode	Mobile App, TF Card, Web, Engrave Software	Mobile App, TF Card, Web, Engrave Software
Support Wi-Fi	✔	✔
Support Material	Cardboard, Wood, Bamboo, Rubber, Acrylic, Fabric, Plastic, Metal	Cardboard, Wood, Bamboo, Rubber, Acrylic, Fabric, Plastic, Metal
Support File Formats	SVG, PNG, JPG, BMP, DXF	SVG, PNG, JPG, BMP, DXF
Offline Work	✔	✔
Input Voltage	100-240V, 50-60Hz	100-240V, 50-60Hz
Output Voltage	DC 24V, 5A	DC 24V, 10A

Specifications

Spider X1S 20W

Spider X1S 40W

Power of the Laser Module

20-24W

40-44W

Machine Performance

120W

240W

Laser Wavelength

455±5nm

Laser Source

Diode Laser

Engraving Area (Standard Mode)

800MM x 800MM

800MM x 2000MM

Cutting Area (Standard Mode)

800MM x 800MM

800MM x 2000MM

Engraving Area (Extension Mode)

800MM x 2000MM

Cutting Area (Extension Mode)

800MM x 2000MM

Laser Point

0.08 x 0.06mm

Maximum Speed

24,800mm/min

Movement Speed

6,000mm/min

Support Air Assist Interface

✔

Support Software

LightBurn, LaserGRBL

Support Operation Mode

Mobile App, TF Card, Web, Engrave Software

Support Wi-Fi

✔

Support Material

Cardboard, Wood, Bamboo, Rubber, Acrylic, Fabric, Plastic, Metal

Support File Formats

SVG, PNG, JPG, BMP, DXF

Offline Work

✔

Input Voltage

100-240V, 50-60Hz

Output Voltage

DC 24V, 5A

DC 24V, 10A

Outstanding Performance

The Spider X1S exceeded my expectations. The large format and integrated air assist make engraving and cutting a breeze. Its design is robust and user-friendly. Highly recommended for serious crafters.

Ideal for My Needs

The Spider X1S is ideal for my needs. The expandable size and 20W power are perfect for my projects. It’s easy to operate and the build quality is excellent. I’m looking forward to seeing more upgrades.

Thanks for the great review, Adam!

Impressive and Reliable

The Spider X1S is impressive and reliable. Its large cutting area and air assist feature are fantastic. It’s built well, easy to use, and efficient. A great choice for anyone in need of a high-quality laser cutter.

We’re pleased you’re happy with it, Justin!

Kickatarter users of the X1 series 20W engraver

Crowdfunded users of the Spider X1 series 20W engraver were mainly attracted by its large, expandable cutting area. Later, they extended it using standard materials that could be purchased. After a series of adjustments and tests, it turned out to be excellent. Now, they can create many impressive works. They are planning to start a custom sales shop on the Etsy platform, which is a great idea. Seeing the new platform board, it feels very innovative and worth trying.

Ideal for Large Carvings

The Spider X1S is perfect for my large carving tasks. The 800x2000mm extension is a major plus. It's easy to set up and operate, and the foldable design makes storage convenient. Highly recommended for anyone needing extra-large formats.

We’re happy you find it useful, Robert!

1 2 3

Specifications	Spider X1S 2025
Laser Module Power	20-24W / 40-44W
Machine Power	120W / 240W
Laser Wavelength	455±5nm
Laser Source	Diode Laser
Engraving Area (Standard Mode)	800MM x 800MM / 800MM x 2000MM
Laser Spot Size	0.08 x 0.06mm
Maximum Speed	24,800mm/min
Movement Speed	6,000mm/min
Support Air Assist Interface	✔
Support Software	LightBurn, LaserGRBL
Support Operation Mode	Mobile App, TF Card, Web, Engrave Software
Support Wi-Fi	✔
Support Material	Cardboard, Wood, Bamboo, Rubber, Acrylic, Fabric, Plastic, Metal
Support File Formats	SVG, PNG, JPG, BMP, DXF
Offline Work	✔
Input Voltage	100-240V, 50-60Hz
Output Voltage	DC 24V, 5A / 10A
